Key Technical Features
- Multi-Bus Crossbar Switching Technology: The X9 utilizes a dedicated high-speed crossbar routing architecture. This allows for massive bandwidth allocation to each slot, ensuring that even with a fully loaded chassis, every 4K@60Hz signal is processed with zero frame loss and zero compression.
- True Seamless “Zero-Second” Switching: Unlike standard processors that may have a brief flicker, the X9 features a specialized “Pre-loading” buffer. This enables instant, glitch-free transitions and fade-in/fade-out effects between any two sources, regardless of resolution or frame rate differences.
- Ultra-High Resolution Background (Pixel-to-Pixel): The X9 supports the “Super-Resolution” background feature, allowing users to upload static or dynamic images that span the entire width of the video wall at its native resolution (e.g., 16K or 32K wide), providing a stunning, high-detail backdrop for data overlays.
- High-Density Modular Scalability: The X9 chassis is designed for massive growth. The modular input/output blades support a vast array of formats, including HDMI 2.0, DP 1.2, 12G-SDI, and IP-Stream (H.265) decoding, allowing a single unit to manage hundreds of independent video windows.
- Intelligent EDID Management: Features advanced EDID (Extended Display Identification Data) emulation and reading. This ensures that every source connected to the X9—whether a legacy PC or a modern 4K media player—automatically outputs the optimal resolution and aspect ratio for the video wall.
Technical Specifications
| Feature | Details |
| Architecture | FPGA + High-speed Crossbar Bus |

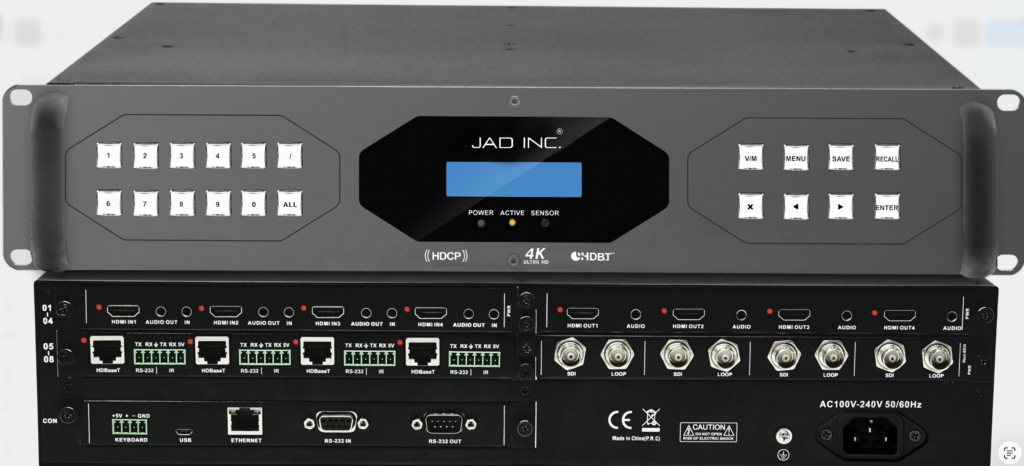

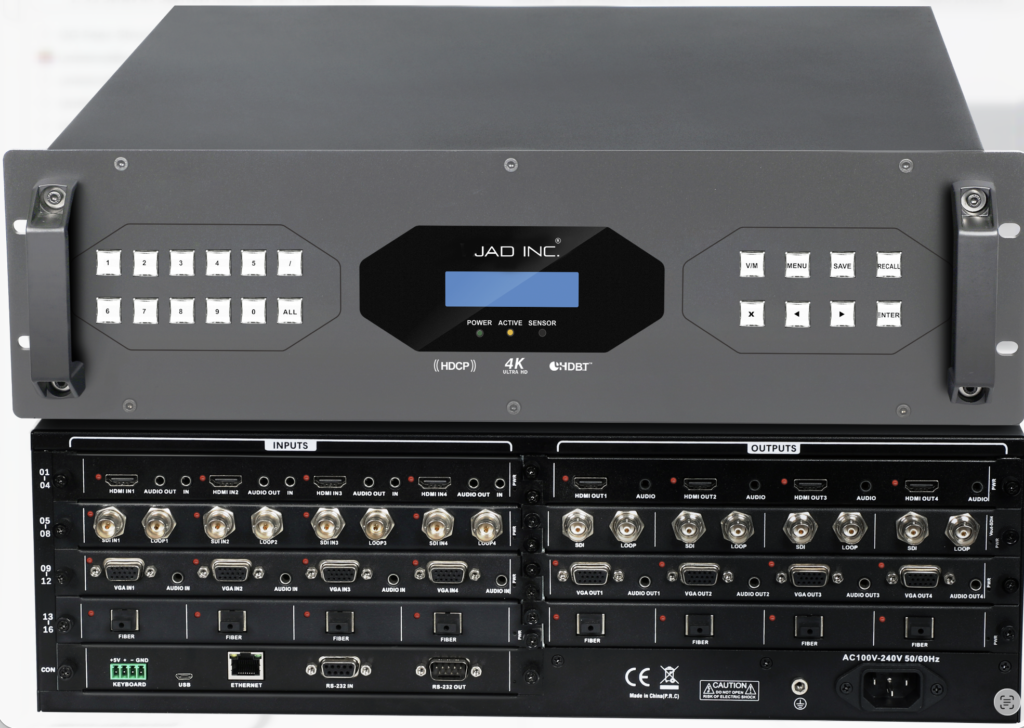

| Chassis Capacity | 2U / 4U / 8U / 14U / 24U (Up to 288×288 I/O) |
| Video Resolution | 4K @ 60Hz 4:4:4 (Input/Output) |
| Windowing Capability | Up to 16/32 Windows per Screen Group |
| Processing Latency | < 1 Frame (Immediate Response) |
| I/O Blade Types | HDMI 2.0, DVI-I, VGA, SDI, Fiber, HDBaseT, IP |
| Network Control | Dual RJ45 for Control & Management |
| Cooling System | Intelligent Front-to-Back Airflow with Redundant Fans |
| Power Redundancy | Dual Hot-swappable Power Supplies (N+1) |
Key Functional Highlights
- Unrestricted Window Management: Move, resize, and layer windows anywhere on the video wall canvas without boundary restrictions. The X9 allows windows to cross between screens seamlessly, maintaining perfect geometric alignment.
- 4-Layer 4K Overlay: Every output channel supports up to 4 layers of independent 4K video windows, allowing for complex data visualizations where maps, live camera feeds, and statistics can be overlaid simultaneously.
- Integrated IP Decoding: The X9 can directly ingest and decode hundreds of IP camera streams (RTSP/ONVIF) without requiring external decoders. This makes it an all-in-one solution for security and surveillance command centers.
- Real-time Output Preview: The management software provides a real-time, high-frame-rate preview of the entire video wall and every input source. Operators can monitor the “Live Environment” from a remote control room with total confidence.
- Internal High-Precision Clock: Ensures that every module in the chassis is perfectly synchronized. This eliminates the “tearing” or “judder” effects often seen on large video walls during fast-moving horizontal panning shots.
Why Choose the X9 Series over the VS Series?
While the VS Series is excellent for standard professional applications, the X9 Series is designed for Large-Scale Data Visualization. Its crossbar architecture handles higher window densities and provides the “Super-Resolution” background capability required for the world’s most advanced control rooms.
