Key Technical Features
- Pure Hardware FPGA Architecture: Unlike PC-based processors, the VS Series uses a high-speed FPGA backbone. This ensures zero-virus risk, sub-millisecond startup times, and 24/7 industrial-grade reliability without the risk of system crashes or “blue screens.”
- True 4K@60Hz Processing: Supports full 4:4:4 color space processing across all inputs and outputs. This ensures that fine text and high-detail graphics—critical for surveillance or financial data—remain razor-sharp without color subsampling artifacts.

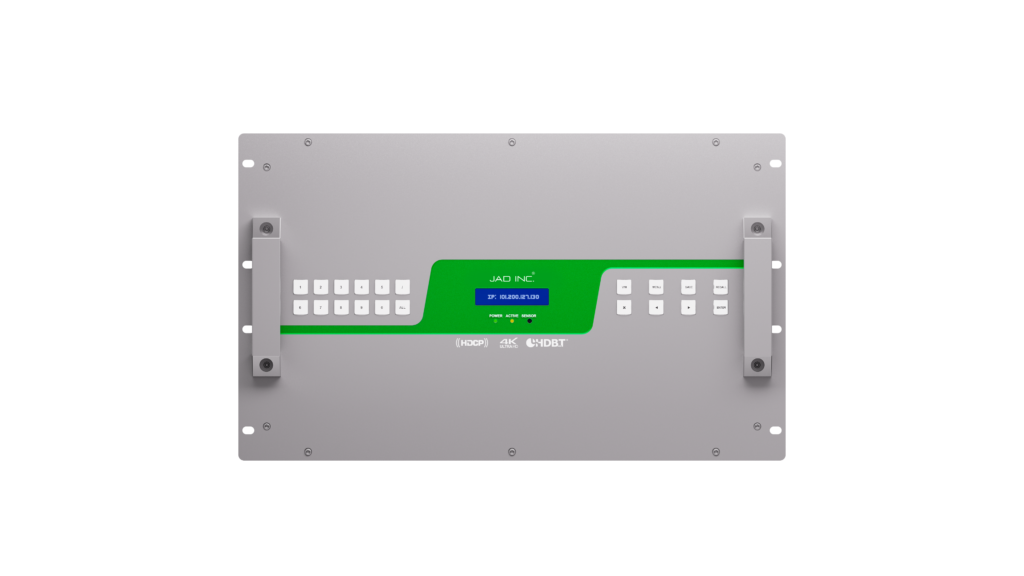

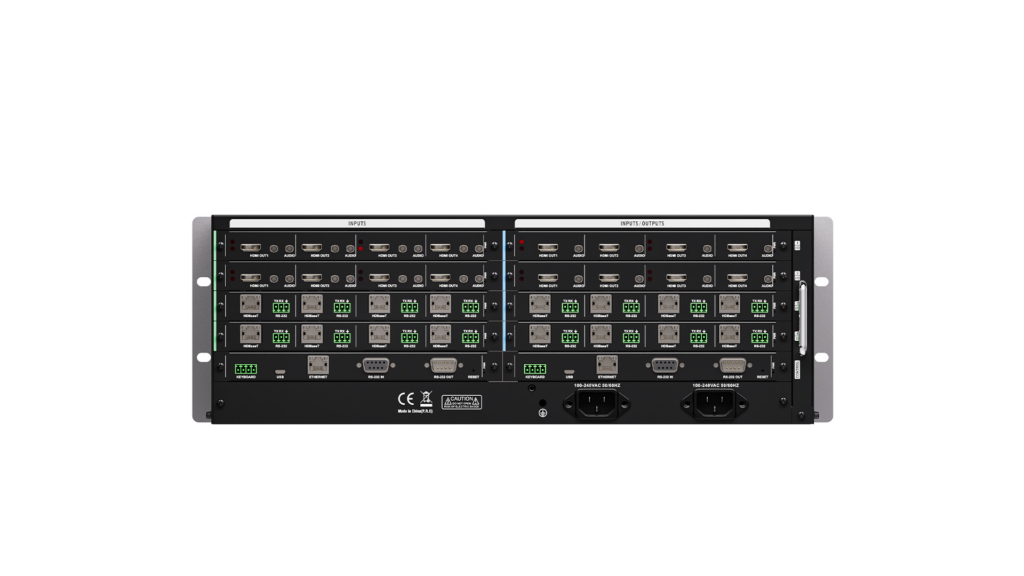

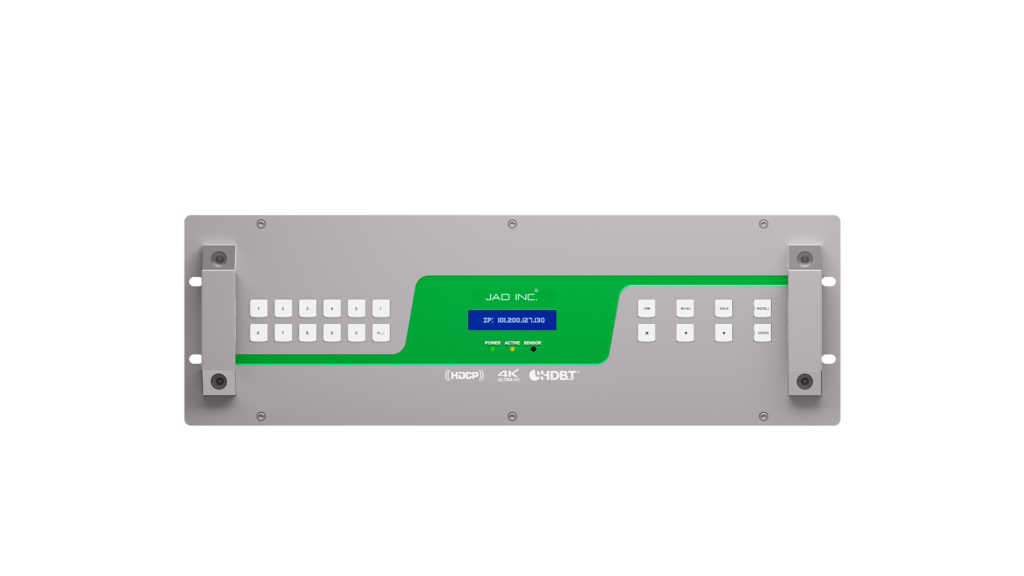

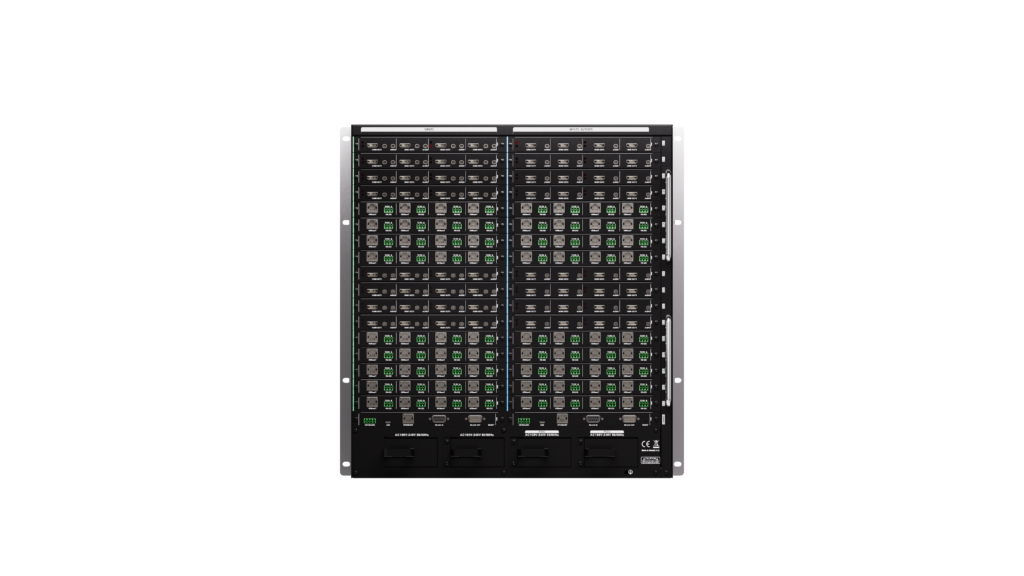

- Modular “Hot-Swappable” Design: The chassis features a flexible card-slot architecture. You can mix and match input/output blades (HDMI, SDI, Fiber, etc.) based on your project needs. Modules can be replaced or added while the system is powered on, ensuring zero downtime.
- Advanced Windowing & Overlays: Supports unrestricted window roaming, layering, and picture-in-picture (PiP). Users can resize, stretch, and overlay up to 4 to 16 windows per screen (depending on the model) across the entire video wall canvas.
- Visualized Control Interface: Compatible with specialized JAD management software that provides a “What You See Is What You Get” (WYSIWYG) preview. Operators can drag and drop sources onto a virtual video wall on their tablet or PC before pushing them to the live display.
Technical Specifications
| Feature | Details |

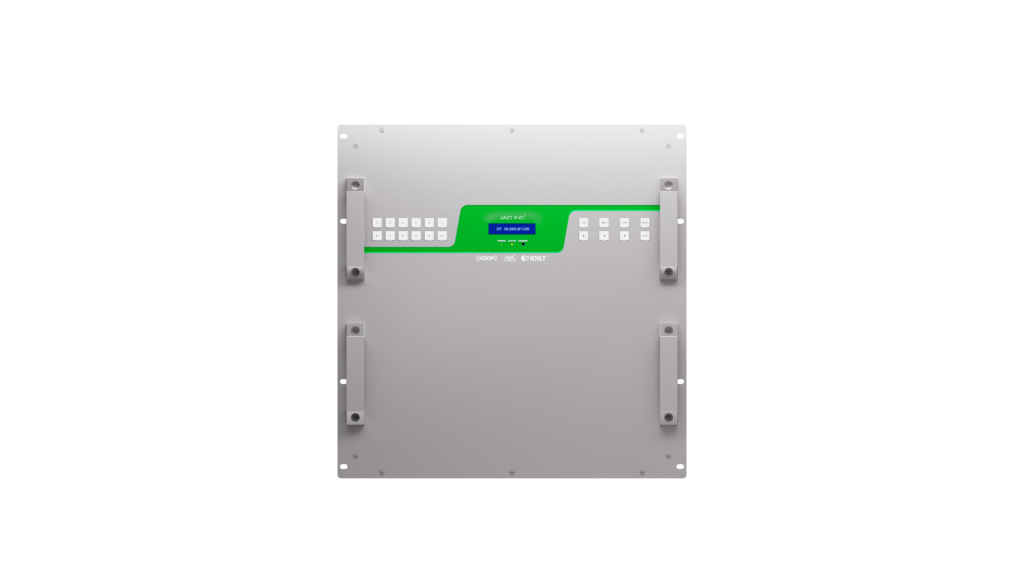

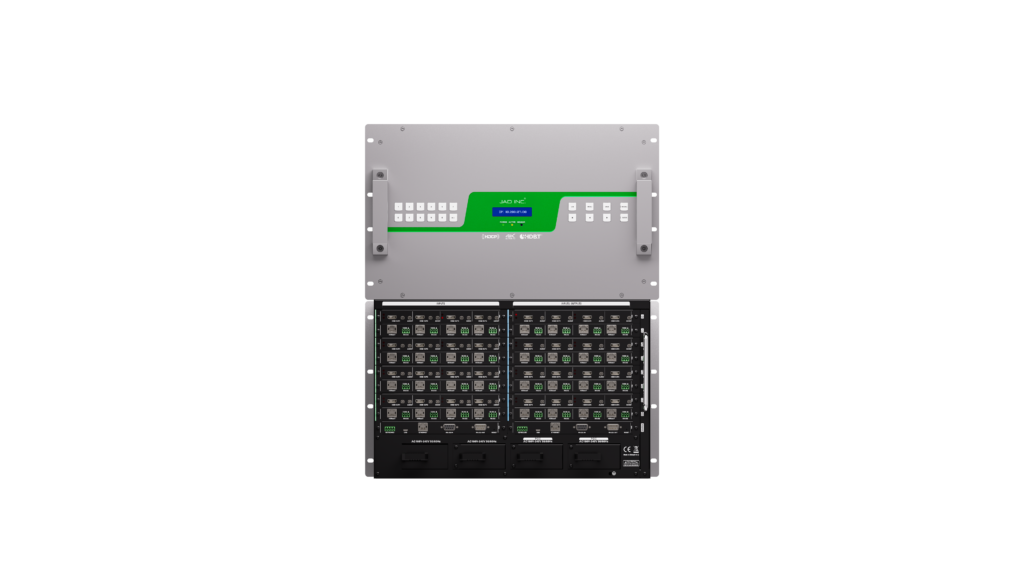

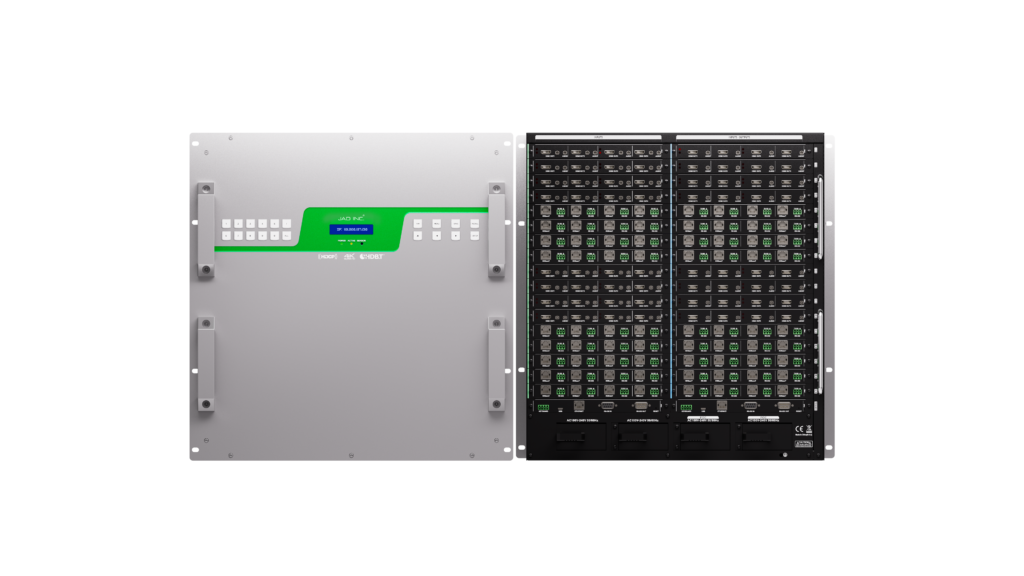

| Chassis Options | 2U, 4U, 8U, 14U (Up to 144×144 I/O) |
| Max Resolution | 3840 x 2160 @ 60Hz (4K UHD) |
| Color Space | RGB 4:4:4 / YUV 4:4:4 / 4:2:2 |
| Input Modules | HDMI 2.0, DP 1.2, 3G/12G-SDI, HDBaseT, IP (H.265) |
| Output Modules | HDMI 2.0, DVI, Fiber Optic, HDBaseT |
| Switching Speed | < 10ms (Seamless / Fade-in-Fade-out) |
| Control Protocols | TCP/IP (RJ45), RS-232, Web-GUI |
| Redundancy | Dual Redundant Power Supplies (Optional) |
| Audio Support | De-embedded Audio / Matrix Audio Routing |
Key Functional Highlights
- Seamless Switching: Every transition between sources is “glitch-free.” There is no black screen or signal delay when switching between different resolutions or signal types, maintaining a professional broadcast-quality output.
- Bezel Compensation: Includes high-precision geometric alignment tools to compensate for the physical bezels of LCD/LED screens, ensuring that diagonal lines and moving objects flow perfectly across the entire wall without “steps.”
- Scrolling Text & Logo Overlay: Allows for the integration of high-definition scrolling banners (tickers) and static corporate logos directly onto the video wall without requiring an external PC or media player.
- Cross-Screen Synchronization: Features a built-in frame synchronization clock to ensure that every screen in the video wall array refreshes at the exact same microsecond, eliminating “tearing” during high-motion video playback.
- Scene Presets: Supports the storage of up to 2,000 layout presets. A single command can instantly reconfigure a 50-screen wall from a “Global Map View” to a “Multi-Camera Grid” for emergency response.
System Integration Note
The VS Series is the ideal engine to drive the JAD-LDSC Retractable Screens or massive LED backdrops. For remote management, it integrates seamlessly with the JAD-DAP Series DSP Matrix to ensure audio and video are perfectly synced across the network.
