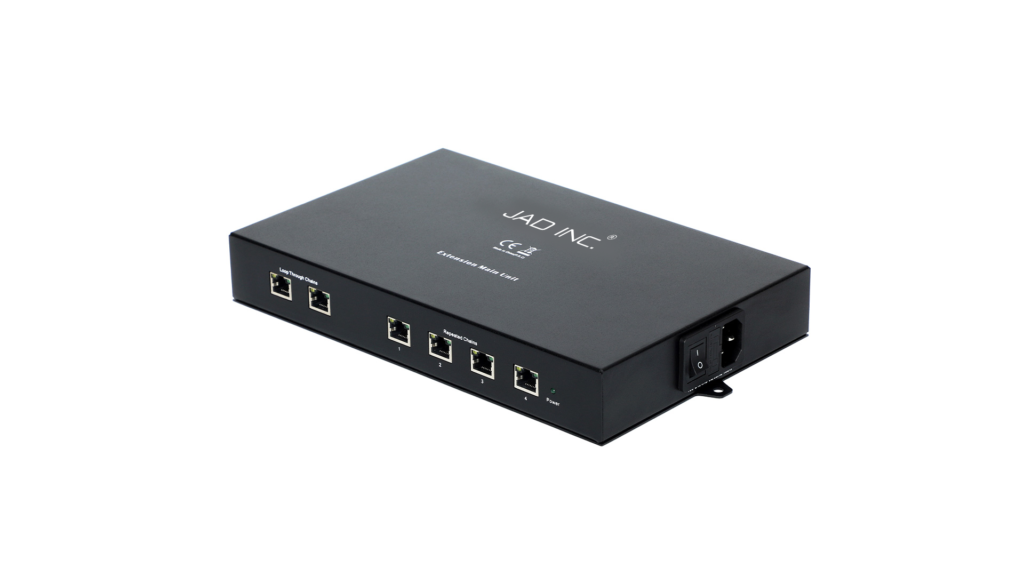

JAD-EXM | High-Capacity Extension Power Unit

The JAD-EXM is a specialized power and data expansion unit designed to scale the CLEACON Digital Wired Conference System to massive proportions. When a conference installation exceeds the power or data capacity of a single central controller, the EXM unit steps in to provide the necessary current and signal amplification. It is the essential component for enabling large-scale deployments of up to 5,200 units, ensuring that every microphone in a massive auditorium receives consistent power and remains perfectly synchronized.

JAD-EXM | High-Capacity Extension Power Unit Overview

Technical Specifications

Feature	Details
Expansion Capacity	Adds support for up to 60–120 additional units per EXM
Max System Limit	Enables scaling up to 5,200 units (with multiple EXM units)
Interface Type	6-Pin DIN or RJ45 (Digital Ring compatible)
Transmission Tech	AUDIO-LINK Digital Network
Power Supply	AC 110V—240V / 50Hz—60Hz
Max Power Consumption	300W
Signal Protection	Integrated signal isolation and surge protection
Status Indicators	LED Power and Unit Connection Status
Mounting	19-inch Standard Rack Mount (2U)
Cooling	Silent internal fan-assisted thermal management

Key Functional Highlights

Massive Scalability: Acts as a “repeater” and power injector for the JAD-DCP2000-D, allowing the system to grow from a small boardroom to a large-scale international convention center without losing signal integrity.
Lossless Audio Transmission: Ensures that the 48kHz uncompressed digital audio remains crisp and clear over long cable runs, preventing voltage drops that could lead to audio distortion or unit failure.
Intelligent Power Management: Automatically balances the power load across multiple chains of wired units, protecting the delicate internal circuitry of the conference microphones from power spikes.
Seamless Integration: Requires zero software configuration; once connected to the main JAD-DCP2000 controller via the expansion port, it is immediately recognized as a system resource.
Redundant Reliability: Built to industrial standards with high-grade internal transformers, ensuring the system stays online during critical, long-duration government or corporate sessions.

System Configuration Tip

For systems with more than 50 units or cable runs exceeding 100 meters, we recommend placing a JAD-EXM unit every 50–60 units to maintain optimal voltage levels throughout the digital ring.
