Technical Specifications
| Feature | Details |
| Transmission Tech | AUDIO-LINK Digital Ring Network (CAT5e/6/7) |
| Audio Sampling | 48kHz Lossless Digital Sampling |
| System Capacity | Up to 250 units (Expandable to 5,200 with VIS-EXM) |
| Max Power Consumption | 150W |
| Frequency Response | 20Hz – 20kHz |
| Signal-to-Noise Ratio | > 96 dBA |
| Dynamic Range | > 94 dB |
| Audio Processing | 8-band EQ per MIC; 16-band EQ for Output |
| I/O Interfaces | XLR, RCA, and Phoenix (6x inputs/outputs) |
| Control Ports | RS-232, RS-485 (Camera Tracking), RJ45 (TCP/IP) |
| Recording | Front-panel USB slot for direct audio recording |
| Mounting | Standard 19-inch Rack Mount (1U) |
Key Functional Highlights
- Hand-in-Hand-Loop-Network: This unique wiring design ensures that if a single discussion unit or cable fails, the rest of the system remains fully operational, providing a “self-healing” wired backbone.
- Advanced Audio Engine: Features a comprehensive DSP suite including Acoustic Feedback Suppression (AFC), Automatic Gain Control (AGC), and Auto-mix technology to ensure clear voice pickup without professional sound engineering.
- Multi-Room Management: Capable of independently controlling up to 4 separate conference rooms, with the ability to merge them into a single system or separate them as needed via the controller settings.
- Echo Cancellation: Supports remote two-way real-time calls with high-performance echo cancellation, allowing for seamless integration with third-party video conferencing platforms like Zoom or Teams.
- Voting & Identification: Beyond simple discussion, the controller manages electronic voting results, speech time limits, and RFID-based participant identification when used with compatible delegate units.
System Comparison Note

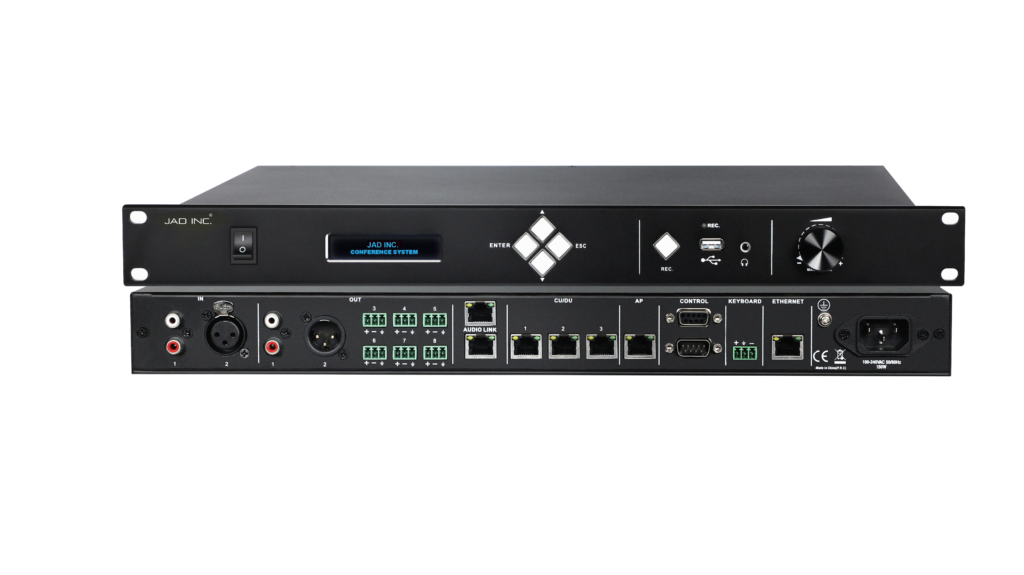

While the JAD-DCP2000-W is optimized for 5G Wi-Fi wireless environments, the JAD-DCP2000-D is specifically engineered for wired infrastructure, offering higher total unit capacity and lower susceptibility to radio frequency interference.
