Technical Specifications
| Feature | Details |
| System Capacity | Supports up to 60–100 units (expandable to 250+) |
| Audio Sampling | 48kHz Digital Sampling Rate |
| Frequency Response | 20Hz – 20kHz |
| Connection Method | 8-Pin DIN or CAT5 Digital Ring |
| Simultaneous Microphones | 1, 3, 6 or Open Mode (All active) |
| Audio Inputs | 1 x RCA, 1 x XLR (External Source) |
| Audio Outputs | 1 x RCA, 1 x XLR, 1 x Phoenix (To PA System) |
| Power Supply | AC 110V—240V / 50Hz—60Hz |
| Mounting | 19-inch Standard Rack Mount (2U) |
| DSP Features | Feedback Suppression & Digital EQ |
Key Functional Highlights
- Robust Wired Stability: Provides a direct, interference-free physical connection between all conference units, ensuring high-fidelity audio without the risk of wireless signal dropouts.
- Flexible Discussion Modes: Supports various meeting management protocols including FIFO (First-In-First-Out), Normal Mode, and Chairman Priority mode to maintain order during sessions.
- Plug-and-Play Setup: Automatically detects and initializes connected delegate and chairman units upon power-up, requiring minimal technical expertise for daily operation.
- Expandable Architecture: While a single unit supports a standard boardroom, it can be linked with expansion power units to drive massive systems of up to 250 microphones.
- Crystal Clear Audio: The internal processor utilizes digital equalization and gain control to ensure every speaker is heard clearly, even in rooms with challenging acoustics.
System Compatibility

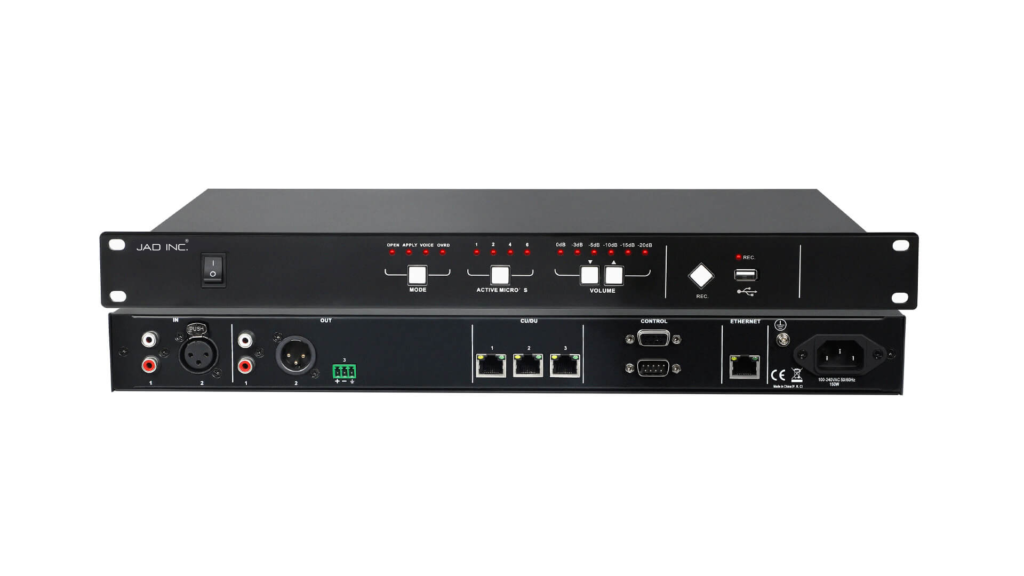

The JAD-DCP1000 is the central hub for the JAD-DCC-T and JAD-DEC-T series of wired desktop units.
