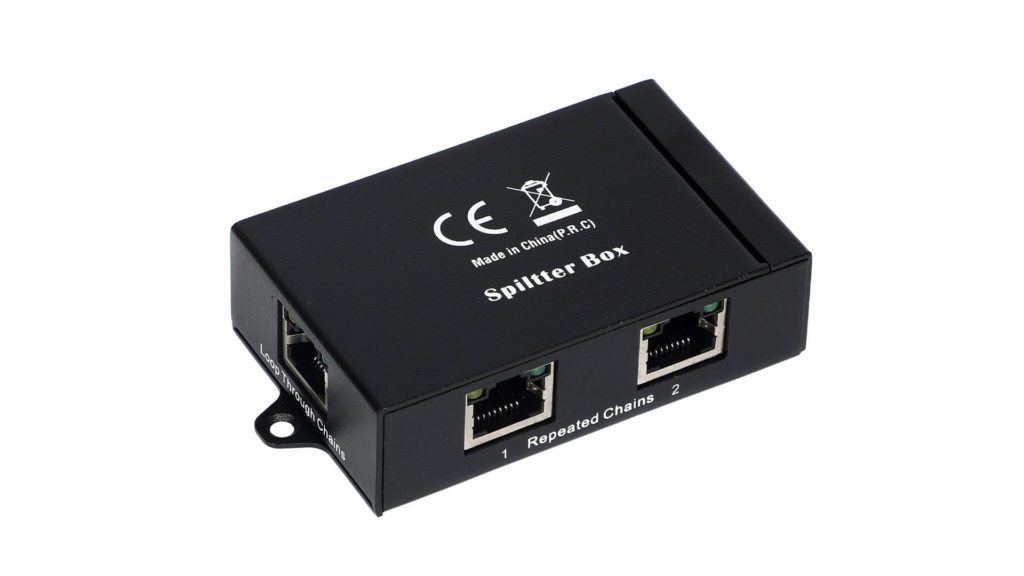

Technical Specifications
| Feature | Details |
| Interface Type | RJ45 (Shielded) |
| Network Protocol | CLEACON Digital Ring Network |
| Cabling Requirement | CAT5e / CAT6 (FTP/STP recommended) |
| Input Ports | 1 x RJ45 (From Controller or Previous Splitter) |
| Output Ports | 2 to 4 x RJ45 (Branching to Unit Chains) |
| Transmission Distance | Up to 100m between nodes |
| Power Supply | Powered via the Digital Ring (No external DC needed) |
| Status Indicators | LED Power and Signal Link lights |
| Mounting | Desktop or hidden under-table mounting |
| Housing | Durable Metal Industrial Casing |
Key Functional Highlights
- System Scalability: Enables the branching of a single conference line into multiple paths, making it possible to wire complex room layouts or “U-shaped” table configurations more efficiently.
- Lossless Digital Distribution: Maintains the integrity of the 48kHz uncompressed audio signal across all branches, ensuring no latency or quality drop-off regardless of the system size.
- Simple Cable Management: Reduces the amount of long-run cabling required back to the central rack by allowing local distribution points near the conference tables.
- Robust Stability: Built with industrial-grade shielded connectors to prevent electromagnetic interference (EMI) and radio-frequency interference (RFI) in high-tech environments.
- Automatic Synchronization: Requires no software configuration; the JAD-DCP2000-W controller automatically recognizes all units connected through the splitter box.
Installation Tip
When deploying the JAD-CNB, always use shielded CAT6 cables to ensure the “Self-Healing” capabilities of the digital ring network are fully maintained across all branches.
