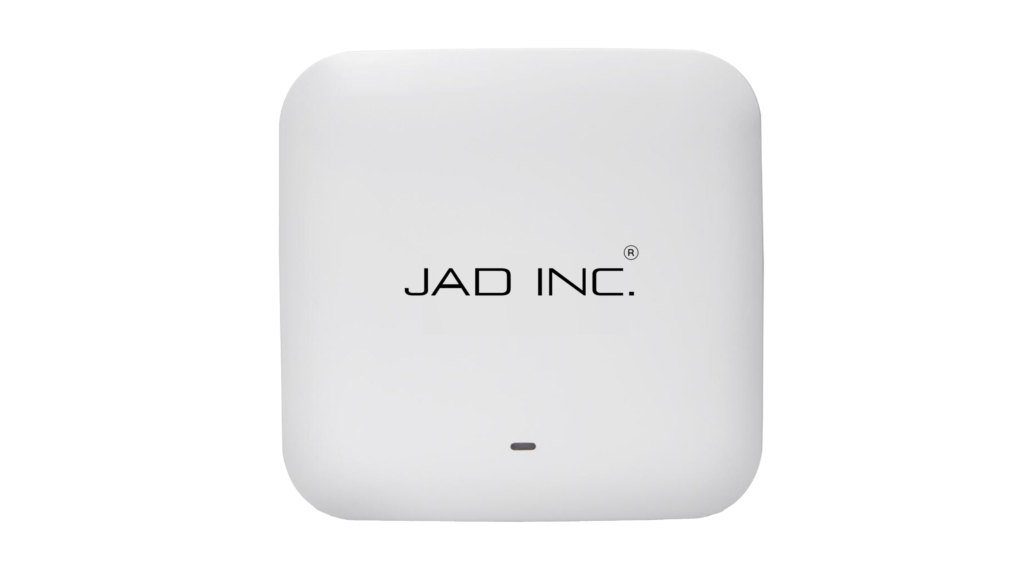

JAD-AP4C Wireless Access Point

The JAD-AP4C is an enterprise-grade Wireless Access Point specifically optimized for high-density AV environments. Engineered to provide the backbone for the JAD Wireless Conference system, it ensures a dedicated, interference-free 5G Wi-Fi highway for crystal-clear audio transmission. With its sleek industrial design and support for up to 250 connections, the AP4C is the essential link between your conference units and the central controller.
Contact Us

JAD-AP4C Wireless Access Point Overview

Technical Specifications

FeatureDetails
Wireless Standard5G Dual-Band (IEEE 802.11n/ac)
Frequency Range5.2GHz — 5.8GHz
Maximum ConnectionsUp to 250 Wireless Units
Coverage RadiusApprox. 30–50 Meters (Indoor)
Interface1 x RJ45 (PoE Supported)
Power SupplyPoE (802.3af) or DC 12V/2A
EncryptionWPA2-PSK AES 128-bit
InstallationCeiling, Wall, or Tripod Mount
AntennaInternal High-Gain Omnidirectional
Signal IndicatorsPower, Link, and Data Transmission LEDs

Key Functional Highlights

  • Dedicated AV Throughput: Unlike standard office routers, the AP4C is tuned to prioritize low-latency audio packets, preventing “voice jitter” or dropouts during critical discussions.
  • Large-Scale Capacity: Built to handle high-density environments, a single access point can manage communication for a massive fleet of up to 250 delegate units.
  • Secure Backbone: Maintains the system’s AES 128-bit encryption across the wireless link, ensuring that sensitive boardroom audio cannot be intercepted.
  • Flexible Deployment: Supports Power over Ethernet (PoE), allowing you to install the unit in the optimal ceiling position using a single LAN cable for both data and power.
  • Seamless Integration: Designed to pair instantly with the JAD-DCP2000-W controller to create a self-healing wireless network.
